Compatible cartridges for an FI-1000 printing system cannot be evaluated from a single attractive print. For a B2B buyer, the real questions are whether the cartridges are recognized correctly, remain stable after idle periods, work with the existing color workflow, and produce repeatable output on the materials used in daily production.
This field story summarizes the validation process behind a compatible Black, Cyan, Magenta, and Yellow pigment ink cartridge set for the HP FI-1000 fixed imager platform. The product discussed here is the compatible cartridge set, not the FI-1000 printing system itself.

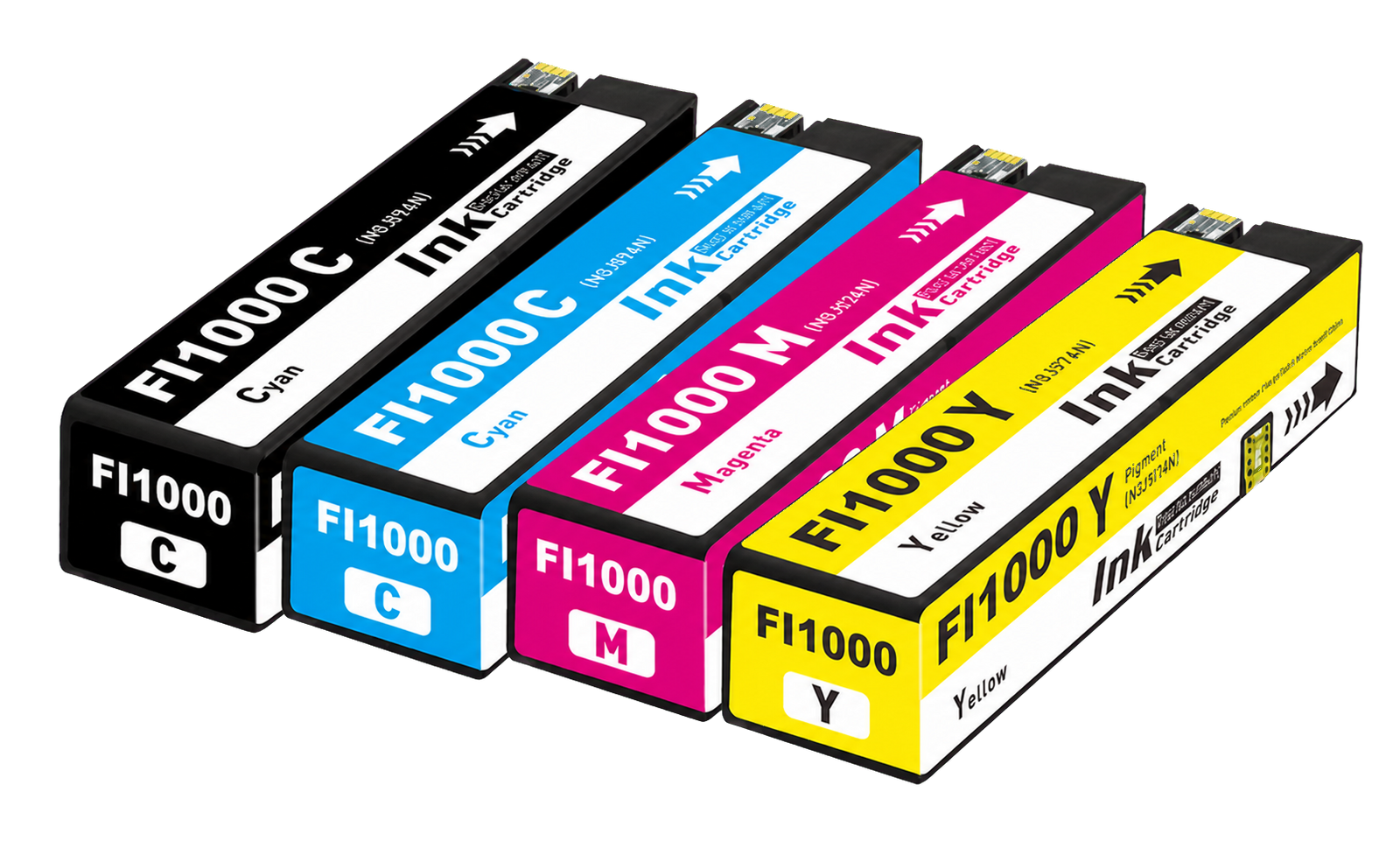

FI-1000 Compatible Cartridge Set at a Glance
- Ink technology: Pigment ink
- Color set: Black, Cyan, Magenta, and Yellow
- Nominal fill volume: 260 ml per cartridge
- Compatible platform: HP FI-1000 fixed imager system
- Primary applications: Labels, cartons, and packaging print
- Supply model: B2B sampling, validation, and repeat-order supply
Each color is supplied as a separate cartridge with a matched recognition chip, protective packaging, and a visible color label. Final compatibility must still be confirmed against the buyer's machine, firmware, production workflow, and operating requirements before a volume order.
Why a Single Print Was Not Enough
The early cartridge batches could produce promising output, but isolated prints did not prove production reliability. The project therefore moved beyond visual inspection and focused on repeat use, idle recovery, chip positioning, material changes, and comparison against the partner's normal production files.
The documented development process included four formulation cycles over approximately fourteen months. Early batches exposed problems that would not have been visible in a short demonstration, including instability after repeated printing and poor recovery after a weekend idle period. Those failures became part of the validation process rather than being hidden by a one-time sample.
The Weekend Idle Test
One of the most important tests repeated a practical production scenario:
- Install the compatible cartridge set and establish the Friday print and nozzle baseline.
- Leave the system idle through the weekend without an artificial production cycle.
- Restart on Monday and review nozzle condition, ink flow, and printed output.
An earlier batch printed acceptably before the idle period but showed serious problems after the weekend. The formulation and flow behavior were then adjusted, and the scenario was repeated. The later validation batch restarted cleanly without the clogging, flooding, or dead-nozzle behavior seen in the earlier test.
For buyers whose equipment does not run continuously, this type of idle-recovery test is more useful than evaluating only fresh installation output.
Production Files and Media Used for Comparison
The project record documents more than 100 comparison samples. Instead of relying only on generic color charts, the evaluation used the partner's actual production label files and compared output across several common materials:
- Semi-gloss paper
- Vinyl
- Matte polypropylene
The comparison focused on practical production characteristics such as small text, solid coverage, CMYK balance, repeatability, and how the cartridge set behaved when the media or job file changed. This does not make one validation result a universal guarantee for every FI-1000 installation; it shows why the buyer's real files and materials should be included in sample testing.
Color Workflow and Existing ICC Profiles
Changing ink can create costs beyond the cartridge price. If a replacement forces a print operation to rebuild ICC profiles, repeat proofs, and obtain new customer approval, the workflow disruption may outweigh the expected consumable savings.
During this project, the compatible CMYK set was evaluated within the partner's existing HP color workflow. Buyers considering a similar change should confirm the RIP, ICC profile, media preset, target color, and approval requirements used in their own production environment. A sample should be judged through the complete workflow, not only by looking at a cartridge specification sheet.
Chip Recognition and Cartridge Construction Checks
Ink performance is only one part of a compatible cartridge program. The validation also included the recognition chip and its physical position. A small PCB positioning correction was required before the cartridge program moved closer to commercial use.
Before approving a sample, B2B buyers should check:
- Whether each cartridge is recognized in the intended machine
- Whether the correct color and cartridge status are displayed
- Whether installation and removal are normal
- Whether the cartridge body and protective seal arrive undamaged
- Whether the color and batch labels remain readable
- Whether firmware information is recorded during testing
What a Distributor or Technical Buyer Should Validate
A useful FI-1000 cartridge sample plan should cover more than the first day. We recommend recording the following checkpoints:
- Machine information: Full system model, firmware version, and current cartridge reference.
- Installation: Recognition, cartridge status, physical fit, and any warning messages.
- Baseline output: Nozzle condition, small text, solids, gradients, and CMYK balance.
- Real jobs: Existing customer files, normal RIP settings, and approved ICC profiles.
- Media range: The actual papers, films, or packaging substrates used in production.
- Idle recovery: Restart behavior after the machine remains unused for a normal weekend or production break.
- Repeatability: Comparison across multiple jobs and, where possible, more than one cartridge batch.
- Order preparation: Color quantities, packing method, carton marks, and delivery requirements.
Keeping these records makes it easier to distinguish a cartridge problem from a machine, profile, maintenance, substrate, or operating-condition issue.
Why B2B Sample Validation Comes Before a Volume Order
FI-1000 compatible cartridges are intended for buyers who can evaluate the product in a controlled production environment. A sample order allows the distributor, OEM integrator, print operation, or technical buyer to confirm recognition, color workflow, media performance, idle behavior, and handling before scaling the order.
After validation, repeat orders should continue to reference the approved cartridge configuration and batch records. This is especially important when the same product will be supplied to multiple customers running different firmware, job files, materials, or production schedules.
Information to Send with an FI-1000 Inquiry
To prepare an accurate sample or wholesale quotation, provide:
- Full machine and system information
- Photos of the currently installed cartridge and its label
- Required colors and quantity per color
- Firmware version, if available
- Main print applications and materials
- Typical idle period or production schedule
- Sample-testing or volume-order requirement
- Packing, carton-mark, destination, or China-forwarder details
Use the Yescolor Compatibility Finder to review other compatible consumable references. For packing and forwarder preparation, see the Shipping & Packing Guide. When your project details are ready, request FI-1000 compatible cartridge samples or a B2B quotation.
FAQ
Is the FI-1000 printing system the product being sold?
No. The product described in this article is a compatible CMYK pigment ink cartridge set for the FI-1000 platform.
What colors and capacity are available?
The documented set includes separate Black, Cyan, Magenta, and Yellow pigment ink cartridges with a nominal fill volume of 260 ml per cartridge.
Does one successful print confirm the cartridge?
No. Recognition, production files, materials, repeat output, and recovery after a normal idle period should also be evaluated.
Can the cartridges be tested with existing ICC profiles?
The project included evaluation within an existing HP color workflow. Every buyer should confirm results using the RIP, ICC profiles, media presets, files, and approval standards used in their own production environment.
Can I request samples before a wholesale order?
Yes. B2B sample validation is recommended before a volume order so the buyer can document machine recognition, print behavior, materials, idle recovery, and the approved cartridge configuration.
HP and FI-1000 are trademarks of their respective owner. Brand names and model references are used only to describe compatibility. The product discussed is a compatible alternative and is not manufactured, sponsored, or endorsed by HP. Final matching and performance should be confirmed through buyer-side validation before quotation or order preparation.
