An FI-1000 cartridge recognition problem should not immediately be treated as an ink-quality problem. Recognition occurs before the ink is evaluated on a printed job and can be affected by cartridge selection, installation, electrical contact, the equipment configuration, or a damaged component.
This checklist is intended for distributors, equipment operators, service teams, and buyers evaluating FI-1000 compatible ink cartridges. It provides a structured way to collect evidence before replacing a cartridge or approving a larger order.
First, Record the Exact Error Message
Do not begin troubleshooting with only a description such as “the cartridge does not work.” Record the complete message shown by the printer or its control software.
Useful information includes:
- The exact error text or error code
- The color position identified by the equipment
- Whether the error appeared before or after installation
- Whether one cartridge or several cartridges are affected
- Whether the previous cartridge was recognized normally
Take a clear photograph or screenshot before restarting the equipment. The original message is usually more useful to a supplier or technician than a description written from memory.
1. Confirm That the Product Is FI-1000
Check the model printed on the cartridge label. Do not identify the product using only the number “1000.” Several unrelated printing-consumable families contain this number.
HP FI-1000 and Canon PFI-1000 are different product families. They have different cartridge structures, applications, and printing systems and are not interchangeable.

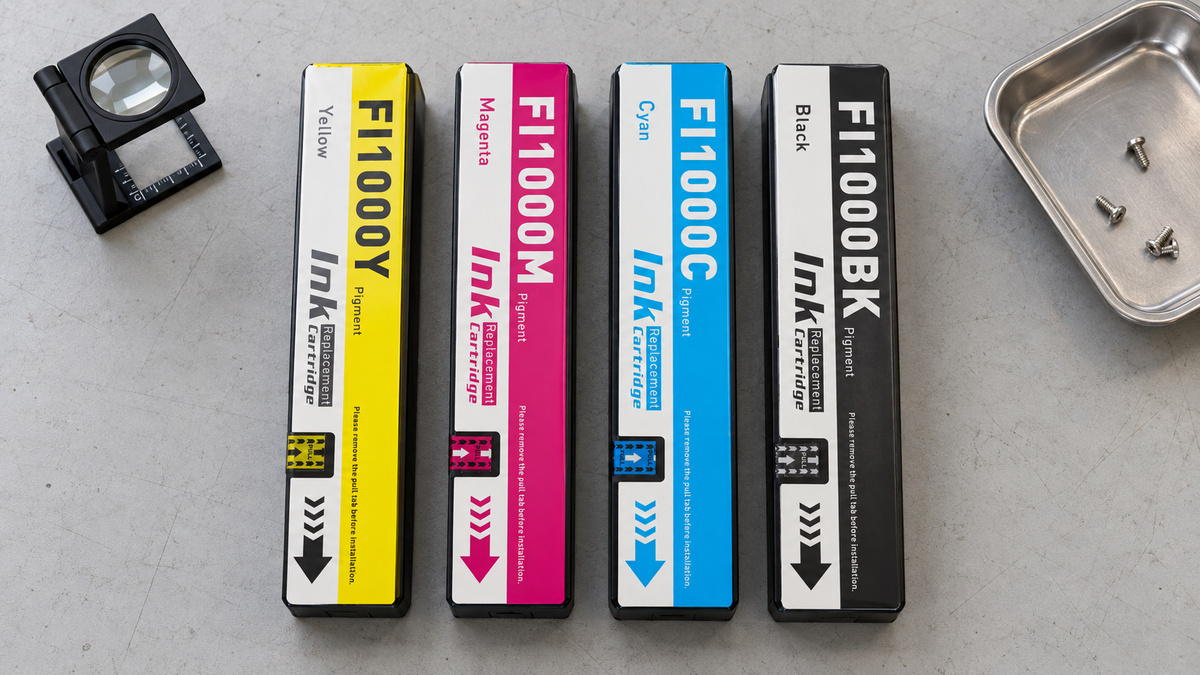

The FI-1000 system uses separate cyan, magenta, yellow, and black supplies. Confirm the complete cartridge model and color before continuing.
2. Confirm the Finished Equipment Model
FI-1000 refers to the printing engine used inside finished printing equipment. The name shown on the outside of the machine may therefore be the equipment manufacturer's own model rather than simply “HP FI-1000.”
Record the following:
- Equipment manufacturer
- Complete printer or system model
- Serial number when technical support requests it
- Country where the equipment is installed
- Software or firmware information available to the operator
A photograph of the machine label can prevent confusion between similar equipment versions.
3. Check the Correct CMYK Position
Compare the cartridge color with the assigned equipment position. FI-1000 supplies are identified separately as cyan, magenta, yellow, and black.
Do not install a cartridge based only on its physical appearance. Check both the color marking and the complete model printed on its label.
If several colors show an error at the same time, record that fact before moving the cartridges. A multiple-cartridge problem may require a different investigation from an error affecting only one color.
4. Remove All Intended Transport Protection
A new compatible cartridge may be supplied with protective packaging, a pull tab, a transport seal, or another component intended to protect it during storage and delivery.
Follow the cartridge installation instructions and remove only the specified protective material. Do not puncture, cut, or remove structural parts that are not identified as transport protection.
If the cartridge must be forced into position, stop. Forcing a mismatched or incorrectly aligned cartridge can damage the cartridge or the equipment.
5. Inspect the Cartridge and Contact Area
Remove the cartridge according to the equipment manufacturer's instructions. Inspect it under good lighting without touching or altering sensitive components.
Look for visible problems
- Cracks or impact damage
- Ink leakage
- Bent or damaged contact areas
- Loose components
- Contamination or packaging material near the contact area
- A cartridge that does not match the shape of the previously working supply
Do not use metal tools, solvents, or abrasive materials on electrical contacts. If cleaning is permitted, follow the equipment or cartridge supplier's instructions.
6. Reinstall the Cartridge Once
If there is no leakage or physical damage, reinstall the cartridge carefully in the correct color position. Make sure it is aligned and seated in the same manner as the previously working cartridge.
Restart the equipment only through its normal operating procedure. Repeated removal, forced installation, or uncontrolled power cycling may make the original problem harder to diagnose.
If the same message returns, record it again and continue with evidence collection.
7. Compare With the Previous Working Cartridge
If the previous cartridge is still available and safe to handle, compare the two units without modifying either one.
Compare:
- Complete cartridge model
- Color designation
- Label and product version
- Contact location
- Cartridge dimensions and connection points
- Any equipment-supplier reference printed on the label
A supplier can evaluate clear comparison photographs more effectively than a message stating that the cartridges “look the same.” Photograph the full cartridge and important details from the same angle.
8. Do Not Confuse Recognition With Ink-Flow Problems
A cartridge-recognition error and a printing-performance problem are not the same issue.
Recognition symptoms can include a missing-cartridge message, incorrect supply identification, or a cartridge that is not accepted after installation.
Ink-flow or printing symptoms can include missing colors, banding, unstable output, or an abnormal nozzle test after the cartridge has already been accepted by the equipment.
Separating these two stages helps the supplier determine whether to investigate the cartridge identification system, installation, ink delivery, or print performance.
9. Test One Controlled Change at a Time
Avoid changing several cartridges, settings, and equipment components at the same time. When multiple changes are made together, even a successful result may not show which action solved the problem.
A controlled process may include:
- Recording the original error
- Confirming the product and equipment models
- Inspecting the affected cartridge
- Reinstalling it correctly once
- Testing an approved comparison cartridge when available
- Recording the result after each action
Information to Send Your Supplier
Prepare the following information before requesting technical support:
- Complete equipment manufacturer and model
- Country where the equipment is operating
- Photo of the machine label
- Photo of the FI-1000 cartridge label
- Photo of the contact and connection areas
- Cartridge color and quantity affected
- Exact error message or screenshot
- Date of installation
- Whether the previous cartridge worked normally
- Actions already taken
Also retain the product packaging and batch information until the case has been resolved. These records help connect the reported result to the exact product supplied.
When Should Troubleshooting Stop?
Stop installation and contact the supplier or a qualified technician if:
- The cartridge is leaking
- The cartridge or contact area is visibly damaged
- The cartridge requires force to install
- The equipment contacts appear bent or damaged
- There is abnormal heat, odor, or an electrical warning
- The cartridge model does not match the approved product
- The same recognition error remains after the documented checks
Reduce Risk Before a Bulk FI-1000 Order
For a new supplier or product configuration, begin with a controlled sample test in the intended equipment. Record recognition, physical installation, CMYK identification, normal printing behavior, and the tested cartridge version.
After approval, use the same confirmed product specification for the bulk order. Do not approve a large purchase using only a general description such as “FI-1000 compatible ink.”
If you need an FI-1000 product configuration reviewed before sample testing, send the equipment model, current cartridge photographs, required colors, and destination country through the Yescolor quotation form.
Frequently Asked Questions
Does “cartridge not recognized” mean the ink is defective?
No. Recognition takes place before print-quality testing. The message may relate to product matching, installation, contacts, the recognition component, equipment configuration, or physical damage.
Can I identify the correct product using only “FI-1000”?
FI-1000 identifies the general printing-engine family, but a purchasing inquiry should also include the finished equipment model, current cartridge label, color, destination country, and required product configuration.
Should I update the equipment firmware during troubleshooting?
Do not change firmware only as an unverified troubleshooting experiment. First record the existing configuration and consult the equipment manufacturer, service provider, or cartridge supplier.
Can I continue using a leaking cartridge?
No. Stop handling and installation, protect the surrounding area, and follow the supplier's safety and return instructions.
Brand names and model numbers are used only to identify the intended printing system. This general checklist does not replace instructions supplied by the equipment manufacturer or inspection by a qualified technician.
